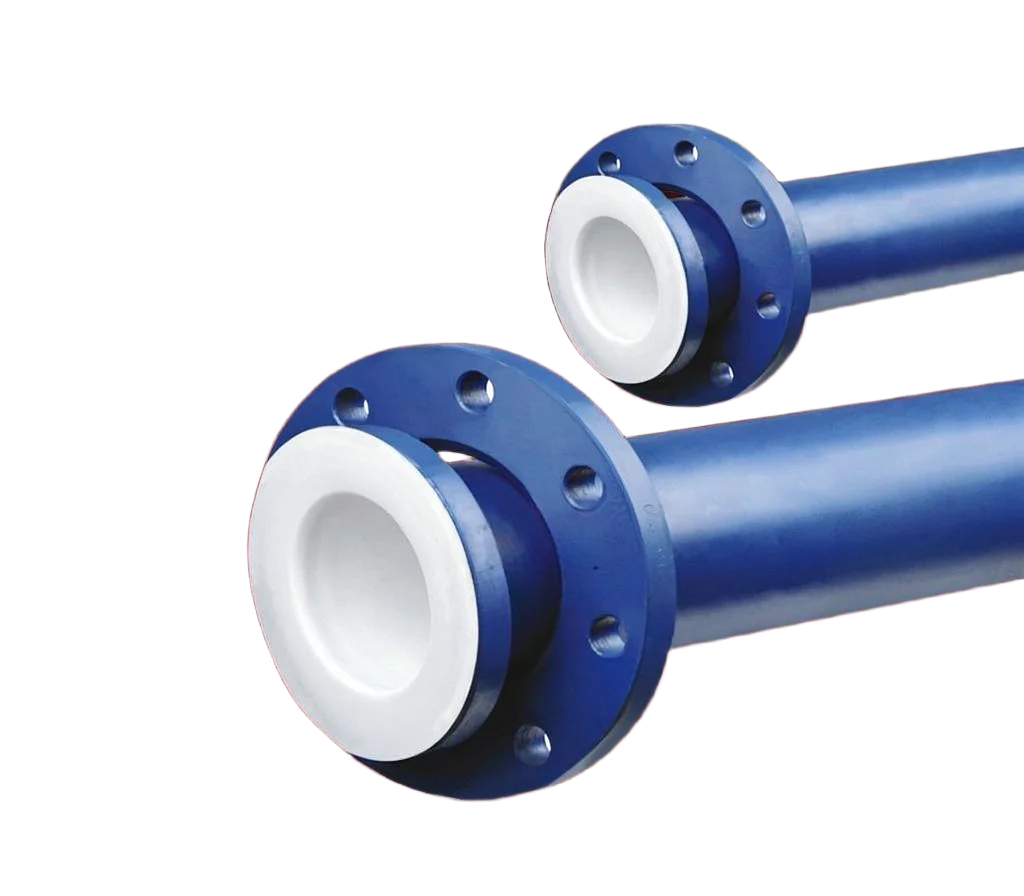

S3C PTFE/PFA Lined Pipework Spools & Fittings
S3C PTFE/PFA Lined Spools & Fittings suitable especially for Oil & Gas, Chemical, Petrochemical and Industrial demand which provides dual protection internally with PTFE/PFA liner and externally with steel support with zinc rich coating.
S3C’s foremost focus is on supplying the highest of quality products into the most demanding process applications, our products are widely used to convey highly corrosive media at elevated temperatures and pressures:
PTFE/PFA Lined pipework suitable for Industries are:
Chemical processing
Petrochemical
Oil & gas
Pharmaceutical
Fertilizer
Mining
Water treatment
Technical Specifications Section
PTFE Lining : S3C Utilizes Virgin PTFE Super Heavy Duty Paste Extruded Liners ASTM D1457 Type III or ASTM D4895 while PFA Lined fittings use virgin material.
Operating temperature: Working Temperature Rates for PTFE and PFA Lined parts between 30Deg.C to 200 Deg.C
Pressure rating : Refer Graph
Pipe sizes : in house straight pipe spools from Size: 3/4” to 6” maximum line length 6 mtrs. Product ranges that we can handle from Size: 1/2” to 24” Dia pipe
Flange standards : According to ASME/ANSI B16.5 used materials ASTM A105 Fixed/One Side Rotating Flanges on spools for easy installation or FixedFlanges as per client’s site demand. PTFE/PFA grades ASTM D4895 & ASTM D3307
Testing procedures : As per ASTM A 1545 for Spark & Hydro Test
Protective Coating: Externally on the outside of Flange parts are subjected to steel shot blasting SA2.5 and treated with zinc rich primer or as per client’s demand.
Packaging and dispatch : Flange Protector(wooden/plastic caps) protecting both flare ends with PO Number/Line item & dimensional labelling of the component will followed for any material dispatch.
